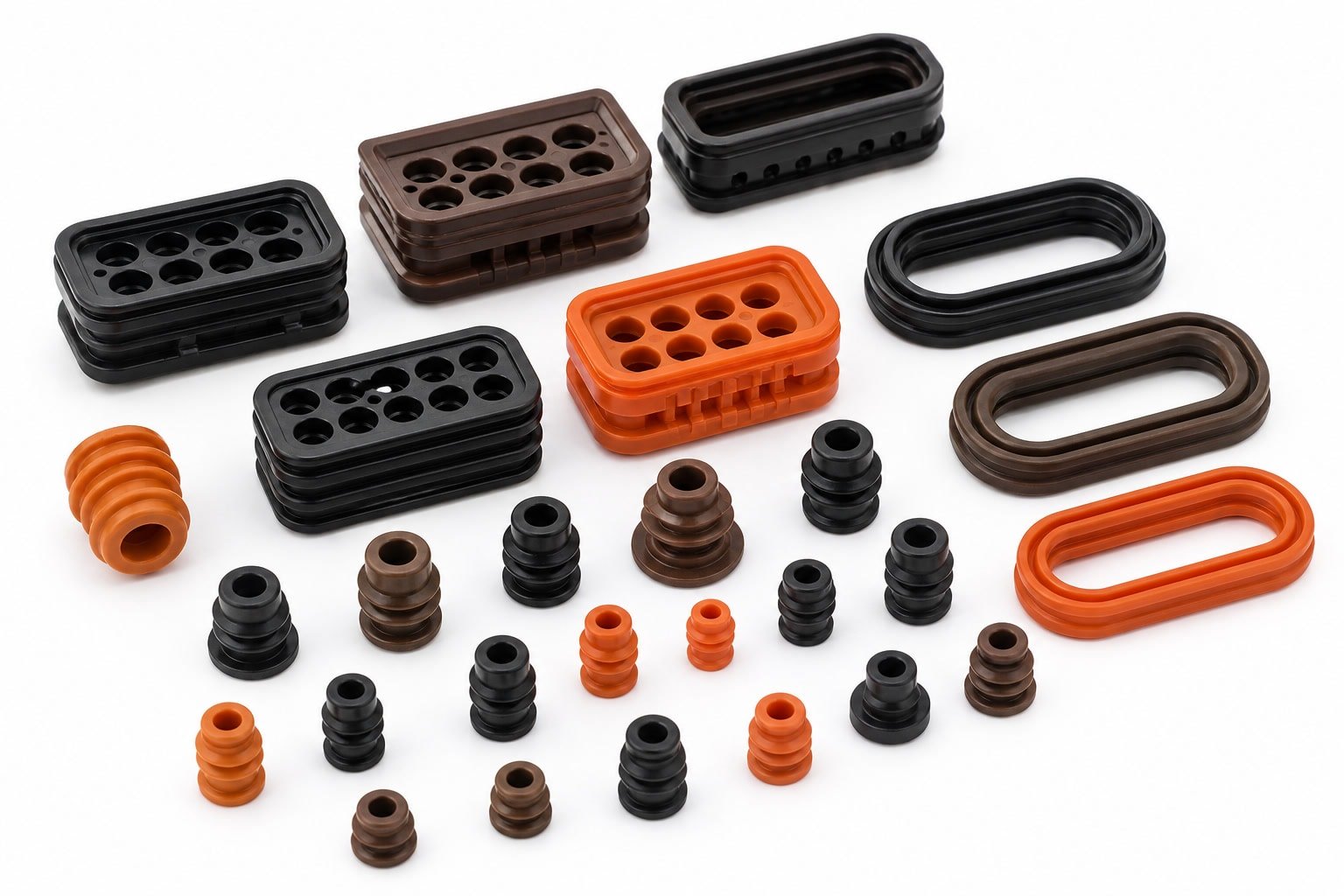

Custom Automotive Connector Seals Manufacturer
We manufacture precision custom automotive connector seals, wire seals, and sensor seals for OEMs and Tier suppliers.
At LSRParts, we specialize in high-volume Liquid Silicone Rubber (LSR) molding and custom tooling for demanding automotive applications. If you need a manufacturing partner to take your custom seal design from early DFM review and material selection through prototyping, validation, and stable mass production, we are built to support you.
Precision Silicone Seals Built for Automotive Production
Automotive and EV electrical systems operate in extreme environments. Connector seals must maintain perfect dimensional consistency, resist aggressive chemicals, endure extreme temperature fluctuations, and provide reliable sealing over the lifespan of the vehicle.
Connector Seals & Wire Seals
Precision seals for electrical connectors and wiring systems.
Battery Enclosure Seals (EV)
High-reliability sealing for electric vehicle battery systems.
Sensor Seals & Gaskets
Protection for sensitive automotive sensors and electronics.
Waterproof Housing Seals
Environmental protection for critical vehicle housings.
Overmolded Electrical Connectors
Integrated silicone-to-substrate connector solutions.
Manufacturing Capabilities for Connector Seals
We utilize advanced molding technologies to ensure part-to-part repeatability and zero-defect sealing performance.
1. LSR Injection Molding
Liquid Silicone Rubber (LSR) injection molding is our core process for high-volume automotive connector seals, offering exceptional precision and fast cycle times.
- Typical Part Tolerance: ±0.05 mm
- Critical Tolerance: Down to ±0.02 mm
- Mold Manufacturing Tolerance: ±0.01 mm
- Part-to-Part Repeatability: Approx. ±0.1 mm
- Silicone Hardness: 10–80 Shore A
- Production Mold Life: 3–5 million shots
- Automation: Automated molding and demolding available
2. LSR Overmolding
For integrated connector housings, we offer precision LSR overmolding with chemical or mechanical bonding directly to substrates.
We bond silicone to:
Plastic Substrates
- PC
- PA
- PBT
- PPSU
- PPA
- PEI
Metal Substrates
- Aluminum
- Stainless Steel
- Brass
- Copper
Eliminates manual assembly and reduces leak paths.
3. Silicone Compression Molding
For larger automotive gaskets or specific sealing components, we provide high-precision compression molding.
- Maximum Part Size: Up to 2500 × 2000 × 1000 mm
- Tight Cavity Tolerances: ±0.1–0.2 mm for small parts
Material Selection for Extreme Environments
Selecting the right silicone compound is critical for automotive reliability. Our engineering team assists in matching the exact material formulation to your environmental requirements.
| Material Type | Target Automotive Application |
|---|---|
| Fluorosilicone | Fuel, oil, and aggressive chemical exposure |
| High-Temperature Silicone | Engine bay and high-heat industrial zones |
| Low-Temperature Silicone | Outdoor, extreme weather, and undercarriage |
| Flame-Retardant Silicone | EV battery systems and critical electrical enclosures |
| Electrically Conductive Silicone | EMI shielding and electronic sensor housings |
| Custom Compounds | Application-specific hardness, color (Pantone/RAL), or mechanical properties |
From DFM to Mass Production: Our Engineering Workflow
A reliable silicone connector seal starts long before the mold is cut. We support product developers and engineering teams with a rigorous pre-production process.
Before tooling begins, our engineers conduct a comprehensive Design for Manufacturability (DFM) review. We analyze part geometry, wall thickness, sealing features, draft angles, undercuts, flash requirements, shrinkage, and expected production volume. This identifies manufacturing risks early and ensures a clear path to stable mass production.
Ready to start? Send us your 3D CAD files and application requirements for a comprehensive DFM review and RFQ.
Our Typical Project Workflow
- 1 DFM Review & Mold Flow Analysis
- 2 Material Selection
- 3 Mold Design (SolidWorks / CAD)
- 4 Tool Manufacturing (CNC / EDM)
- 5 T0/T1 Sampling & Validation
- 6 Production Approval
- 7 Mass Production
- 8 Inspection, Assembly & Packaging
Precision Tooling & Secondary Operations
In-House Tooling Capabilities
We build both rapid prototype tooling (100–10,000 cycles, 10-12 day lead time) and hardened steel production tooling (3–5 million shots, 3-6 week lead time). Using 3-axis/5-axis CNC and Wire/Sinker EDM, we achieve tool surface finishes of Ra 0.8 μm or better, ensuring your seals have flawless mating surfaces.
Secondary Operations
Automotive seals often require post-processing to meet strict outgassing and assembly standards. We provide a full suite of secondary operations in-house:
- Post-Curing (Critical for automotive VOC compliance)
- Precision Trimming & Deflashing
- X / Y Slitting & Valve Slitting
- Die Cutting & Punching
- Laser Marking & Printing
- Functional Testing & Automated Inspection
- Custom Packaging
Are We the Right Fit for Your Project?
LSRParts is optimized for B2B procurement and engineering teams. You are an ideal fit for our manufacturing services if your project requires:
Custom automotive connector seals based on your proprietary 3D files/drawings
New prototype or high-volume production tooling
Annual production demand of 100,000+ pieces
Strict dimensional tolerances, functional testing, and material reliability
Dedicated DFM and engineering support from a specialized silicone manufacturer
Request a Quote (RFQ)
Partner with LSRParts to secure a reliable, high-volume supply chain for your automotive connector seals.
Submit your CAD drawings, material requirements, and estimated annual volume today. Our engineering team will review your files and provide a detailed DFM analysis and competitive manufacturing quote.
