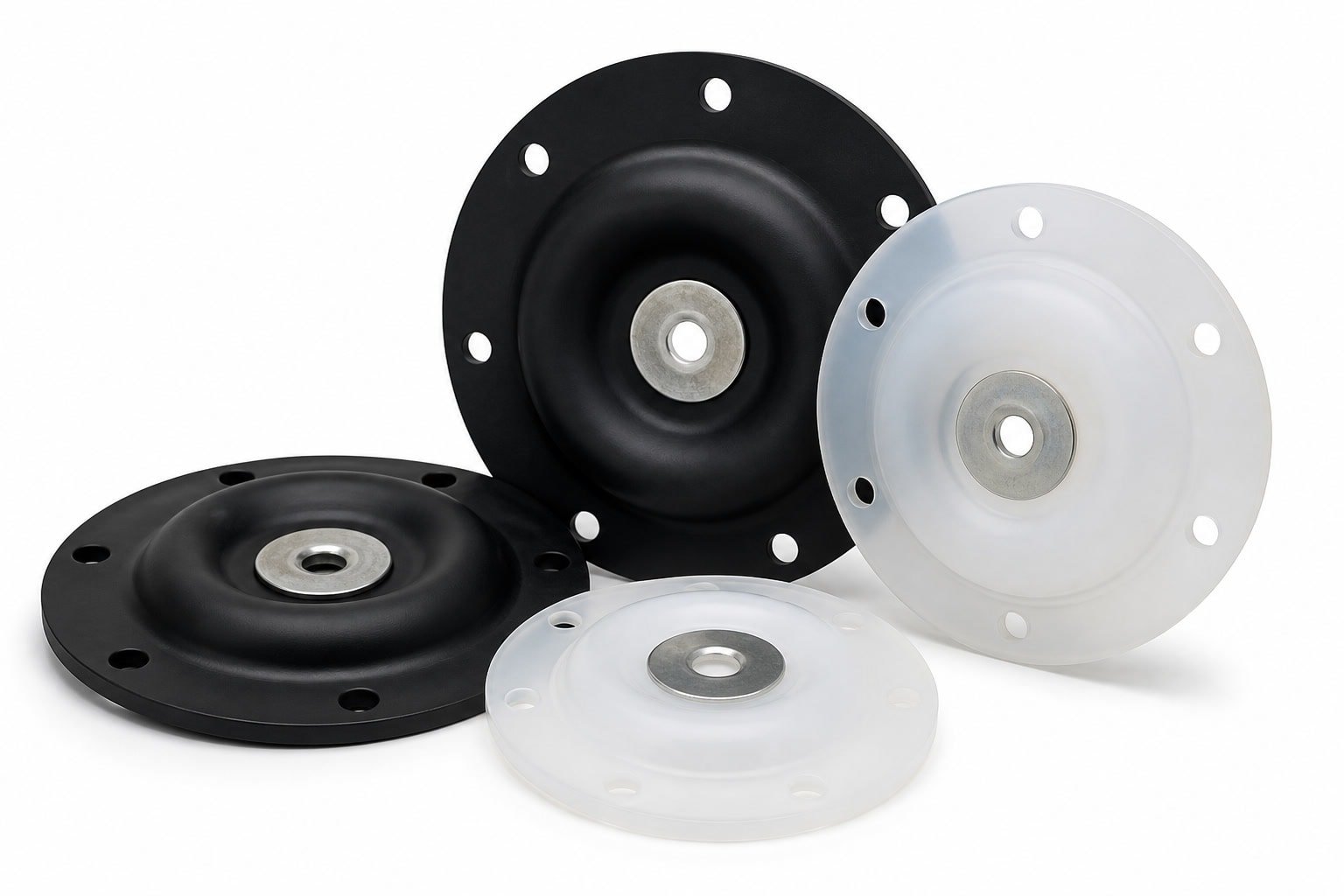

Custom Silicone Pump Diaphragms Built for Reliable Fluid Control
For OEMs and engineering teams developing pumps, valves, and fluid management systems, the performance of a diaphragm directly determines the reliability of the entire device. A failed diaphragm means leaks, pressure drops, or complete system failure.
At LSRParts, we specialize in manufacturing custom silicone pump diaphragms engineered for consistent flex life, precise pressure response, and long-term chemical compatibility. We do not sell standard off-the-shelf diaphragms. Instead, we work directly from your 3D CAD files and performance requirements to deliver production-ready components that meet your exact specifications.
Why Partner with LSRParts for Your Pump Diaphragms?
Designing a reliable pump diaphragm requires balancing material flexibility, tear strength, and chemical resistance. When you work with us, you gain an engineering partner focused on translating your functional requirements into a stable, repeatable manufacturing process.
DFM Support That Prevents Production Delays
A reliable silicone diaphragm starts before the mold is cut. Our engineering team reviews your part geometry, wall thickness, flex zones, draft angles, and tolerance requirements. By identifying potential manufacturing risks—such as air traps, flash points, or uneven shrinkage—during the design phase, we help you avoid costly mold modifications and accelerate your time to market.
Material Selection for Demanding Environments
Different fluid control applications require different silicone properties. Whether your pump handles aggressive chemicals, high-temperature fluids, or requires medical-grade purity, we help you select the right compound. We process General Purpose LSR, Medical Grade LSR, Food Grade LSR, Fluorosilicone (for fuel and chemical resistance), and high/low-temperature silicone compounds.
Precision Tooling for Consistent Performance
Diaphragms often require critical tolerances in flex zones to ensure accurate pressure response and longevity. Our in-house tooling capabilities include hardened steel molds (P20, H13, 420 Stainless) machined with precision CNC and EDM equipment. This allows us to achieve mold manufacturing tolerances of ±0.01 mm, ensuring part-to-part repeatability and minimizing flash that could interfere with sealing.
Scalable Manufacturing
Whether you are validating a new medical pump design or ramping up production for automotive fluid systems, we scale with your program. We offer prototype tooling (10–12 days benchmark lead time) for early validation, transitioning seamlessly into multi-cavity production tooling capable of 3–5 million shots for annual volumes exceeding 100,000 pieces.
Manufacturing Capabilities for Pump Diaphragms
Depending on your diaphragm's geometry, production volume, and material requirements, we utilize Liquid Silicone Rubber (LSR) Injection Molding or Silicone Compression Molding. We also specialize in LSR Overmolding for diaphragms that require a rigid plastic or metal insert for mounting or structural support.
LSR Injection Molding Specifications
| Process | Liquid Silicone Rubber Injection Molding |
| Silicone Hardness | 10–80 Shore A |
| Typical Part Tolerance | ±0.05 mm |
| Critical Tolerance | Down to ±0.02 mm, application dependent |
| Mold Manufacturing Tolerance | ±0.01 mm |
| Part-to-Part Repeatability | Approx. ±0.1 mm, geometry dependent |
| Mold Cavities | Single-cavity / Multi-cavity |
| Production Mold Life | 3–5 million shots |
| Tooling Type | Prototype Tooling / Production Tooling |
LSR Overmolding for Reinforced Diaphragms
| Plastic Substrates | PC, PA, PBT, PPSU, PPA, PEI etc. |
| Metal Substrates | Aluminum, Stainless Steel, Brass, Copper |
| Bonding Strategy | Chemical / mechanical bonding |
| Mold Tolerance | ±0.01 mm |
Silicone Compression Molding Specifications
| Process | Silicone Rubber Compression Molding |
| Typical Part Tolerance | ±0.2 mm |
| Small Part Mold Cavity Tolerance | ±0.1–0.2 mm |
| Part-to-Part Repeatability | Approx. ±0.1 mm |
| Mold Materials | P20 / H13 / 420 Stainless Steel |
Comprehensive Secondary Operations
A molded diaphragm often requires post-processing to meet final assembly requirements. We manage these secondary operations in-house to maintain quality control and streamline your supply chain.
-
Post-Curing: To remove volatile compounds and stabilize physical properties, critical for medical and food-grade applications.
-
Precision Trimming & Die Cutting: Ensuring clean edges for optimal sealing.
-
Punching & Valve Slitting: Creating precise fluid pathways or breather holes.
-
Assembly & Functional Testing: Integrating diaphragms into sub-assemblies before shipping.
-
Custom Packaging: Protecting delicate flex zones during transit.
Our Project Workflow
We provide a structured, transparent process from your initial inquiry to final delivery, ensuring your project stays on schedule and meets all specifications.
-
1
DFM Review & Material Selection
Analyzing your CAD file and application requirements.
-
2
Mold Design & Tool Manufacturing
Engineering and machining the mold to exacting tolerances.
-
3
T0/T1 Sampling
Providing initial parts for your functional testing and dimensional verification.
-
4
Validation & Production Approval
Finalizing the process based on your feedback.
-
5
Mass Production & Inspection
Ramping up volume with strict quality control.
-
6
Secondary Operations & Packaging
Finalizing the components for delivery.
Request a Quote for Your Custom Pump Diaphragms
If you are developing a new fluid control device or need a more reliable manufacturing partner for an existing program, LSRParts is ready to support your engineering and procurement teams.
We focus on high-value, repeat-production programs (typically 100,000+ pieces annually) where precision, tooling quality, and consistent performance are critical.
Send us your 3D CAD files (SolidWorks/STEP), 2D drawings, material requirements, and estimated annual volumes. Our engineering team will review your project and provide actionable DFM feedback along with a comprehensive manufacturing proposal.
Contact LSRParts today
Start the conversation about your custom silicone pump diaphragms.
