Custom LSR Injection Molding
Custom Coffee Machine Silicone Parts Manufacturing
When designing high-performance coffee machines, espresso makers, and commercial brewing equipment, the quality of the internal components is non-negotiable. At LSRParts, we specialize in manufacturing precision custom silicone parts for coffee machines. From high-temperature brewing environments to precise fluid control, our liquid silicone rubber (LSR) and molded silicone components are engineered to deliver dimensional consistency, exceptional sealing performance, and long-term material reliability.
We partner with OEMs, product developers, and engineering teams to transform custom drawings and CAD files into production-ready components. By providing comprehensive support from early Design for Manufacturability (DFM) review and food-grade material selection to mold design, validation, and mass production, LSRParts ensures your coffee machine components meet the highest industry standards.
Why Choose Silicone for Coffee Machine Components?
Coffee machines operate under demanding conditions, including exposure to boiling water, steam, high pressure, and frequent thermal cycling. Silicone, particularly Liquid Silicone Rubber (LSR), is the ideal material for these applications due to its unique physical and chemical properties:
High-Temperature Resistance
Withstands continuous exposure to hot water and steam without degrading, melting, or losing elasticity.
Food-Grade Compliance
Food-grade and platinum-cured silicones ensure no taste, odor, or harmful chemicals are transferred to the beverage, complying with FDA, LFGB, and other regulatory standards.
Excellent Sealing Properties
Maintains a watertight and gastight seal under pressure, preventing leaks in boilers, pumps, and brewing groups.
Durability and Longevity
Highly resistant to fatigue, compression set, and aging, ensuring a long operational life even in high-use commercial espresso machines.
Chemical Resistance
Resists degradation from coffee oils, descaling solutions, and cleaning chemicals.

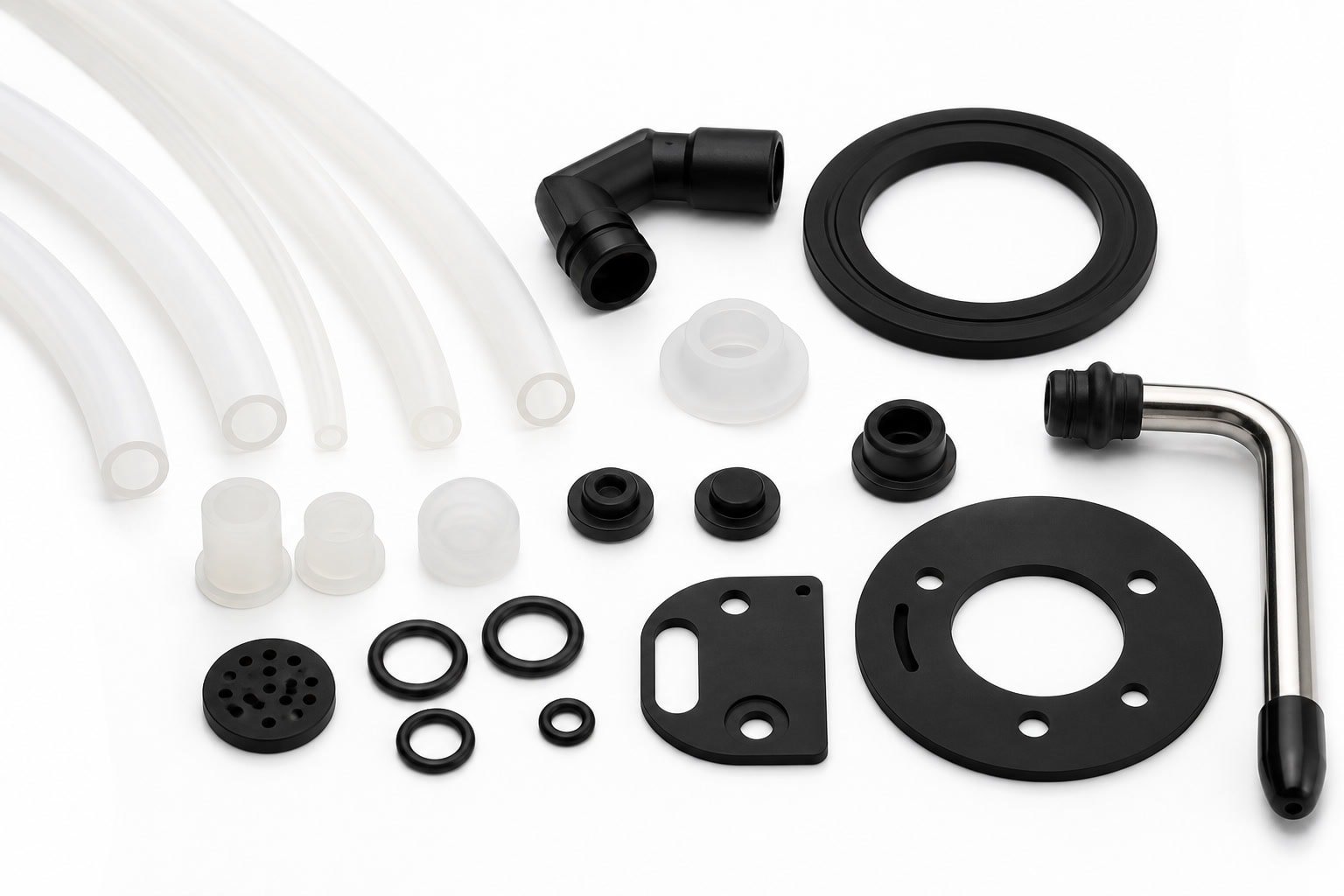

Custom Coffee Machine Silicone Parts We Manufacture
LSRParts does not supply standard off-the-shelf rubber products. Instead, we focus entirely on custom components built around your specific application, drawing, and performance requirements. We manufacture a wide range of coffee machine parts, including:
Brew Group Seals and Gaskets
Precision-molded seals that withstand high pressure and temperature during espresso extraction.
Water Tank O-Rings and Grommets
Leak-proof seals for water reservoirs and fluid transfer connections.
Steam Wand Seals and Grips
Heat-resistant internal seals and overmolded protective grips for safe handling.
Check Valves and Duckbill Valves
Highly responsive fluid control components for pumps and water lines.
Silicone Tubing
Food-grade, platinum-cured silicone tubing for internal water and milk routing.
Diaphragms and Membranes
Durable components for pressure regulation and pump operation.
Overmolded Connectors
Silicone bonded to plastic (e.g., PPSU, PA) or metal substrates for integrated fluid connections.
Our Manufacturing Capabilities
LSRParts offers a comprehensive suite of manufacturing processes to produce your custom coffee machine parts efficiently and precisely.
LSR Injection Molding
For high-volume, high-precision coffee machine parts, Liquid Silicone Rubber (LSR) injection molding is our core expertise.
- Max Part Envelope300 × 200 × 100 mm
- Silicone Hardness10–80 Shore A
- Typical Tolerance±0.05 mm
- Critical Tolerancesdown to ±0.02 mm
- Production ScalePrototype to high-volume
- Mold Life3–5 million shots
LSR Overmolding
We excel in molding LSR directly onto plastic or metal substrates, creating robust, integrated components that reduce assembly time and improve sealing integrity.
- Plastic SubstratesPC, PA, PBT, PPSU, PPA, PEI
- Metal SubstratesAluminum, Stainless Steel, Brass, Copper
- BondingAdvanced chemical & mechanical
Compression Molding
Ideal for larger seals, gaskets, and components where LSR injection molding may not be required.
- Maximum Size2500 × 2000 × 1000 mm
- Typical Tolerance±0.2 mm
- Mold MaterialsP20 / H13 / 420 SS
Silicone Extrusion
We manufacture custom food-grade silicone tubing and profiles for fluid transfer within coffee machines.
- Tubing OD0.5–120 mm
- Wall Thickness0.3–15 mm
- Cross-Section Tolerance±0.03 mm
- Curing MethodsHot air, Salt bath, Microwave, Steam
Engineering and Tooling Support: From DFM to Mass Production
A reliable silicone component starts long before the mold is built. At LSRParts, our engineering team conducts a rigorous review of your part geometry before tooling begins.
Our DFM (Design for Manufacturability) process evaluates wall thickness, sealing features, draft angles, undercuts, flash requirements, material shrinkage, and expected production volumes. This proactive approach identifies potential manufacturing risks early, giving OEMs a clear, predictable path from prototype validation to stable mass production.
Our Typical Project Workflow:
Tooling Capabilities
Rapid Tooling
Aluminum tooling for prototypes (10–12 days lead time, 100–10,000 cycles).
Production Tooling
Hardened steel tooling (P20, NAK80, H13, S136, 420) for high-volume production (3–6 weeks lead time).
Food-Grade Material Selection
Selecting the right silicone compound is critical for coffee machine applications. LSRParts works with a comprehensive matrix of materials to match your specific needs:
- •Food Grade LSR: Compliant with international food safety standards for water tanks and internal brewing components.
- •Platinum-Cured Silicone: High purity, no by-products, excellent clarity for tubing and sensitive fluid contact areas.
- •High-Temperature Silicone: Specifically compounded for boiler seals and steam wand components.
- •Custom Compounds: Tailored formulations for specific hardness, color (Pantone matching), or mechanical requirements.
Comprehensive Secondary Operations
To deliver fully finished, production-ready components, LSRParts offers a wide range of in-house secondary operations:
- Post-Curing
- Precision Trimming and Die Cutting
- Valve Slitting (X / Y slits)
- Pad Printing and Laser Marking
- Cutting & Coiling (for extruded tubing)
- Assembly and Functional Testing
- Custom Packaging
Partner with LSRParts for Your Coffee Machine Programs
LSRParts is the ideal manufacturing partner for OEMs and Tier suppliers with new tooling requirements, custom 3D files, and annual demands exceeding 100,000 pieces. We are dedicated to delivering high-value, repeat-production silicone components that ensure the reliability, safety, and performance of your coffee machines.
Contact our engineering team today to submit your drawings for a DFM review and discover how LSRParts can support your next coffee machine development program.
Get Started with LSRPartsRequest Your DFM Review and Quote
Submit your drawings and specifications to our engineering team. We will conduct a comprehensive Design for Manufacturability review and provide you with a detailed quotation for your custom coffee machine silicone parts.
- ✓ DFM feedback within 2–3 business days
- ✓ Food-grade material recommendations
- ✓ Transparent pricing for tooling and mass production
