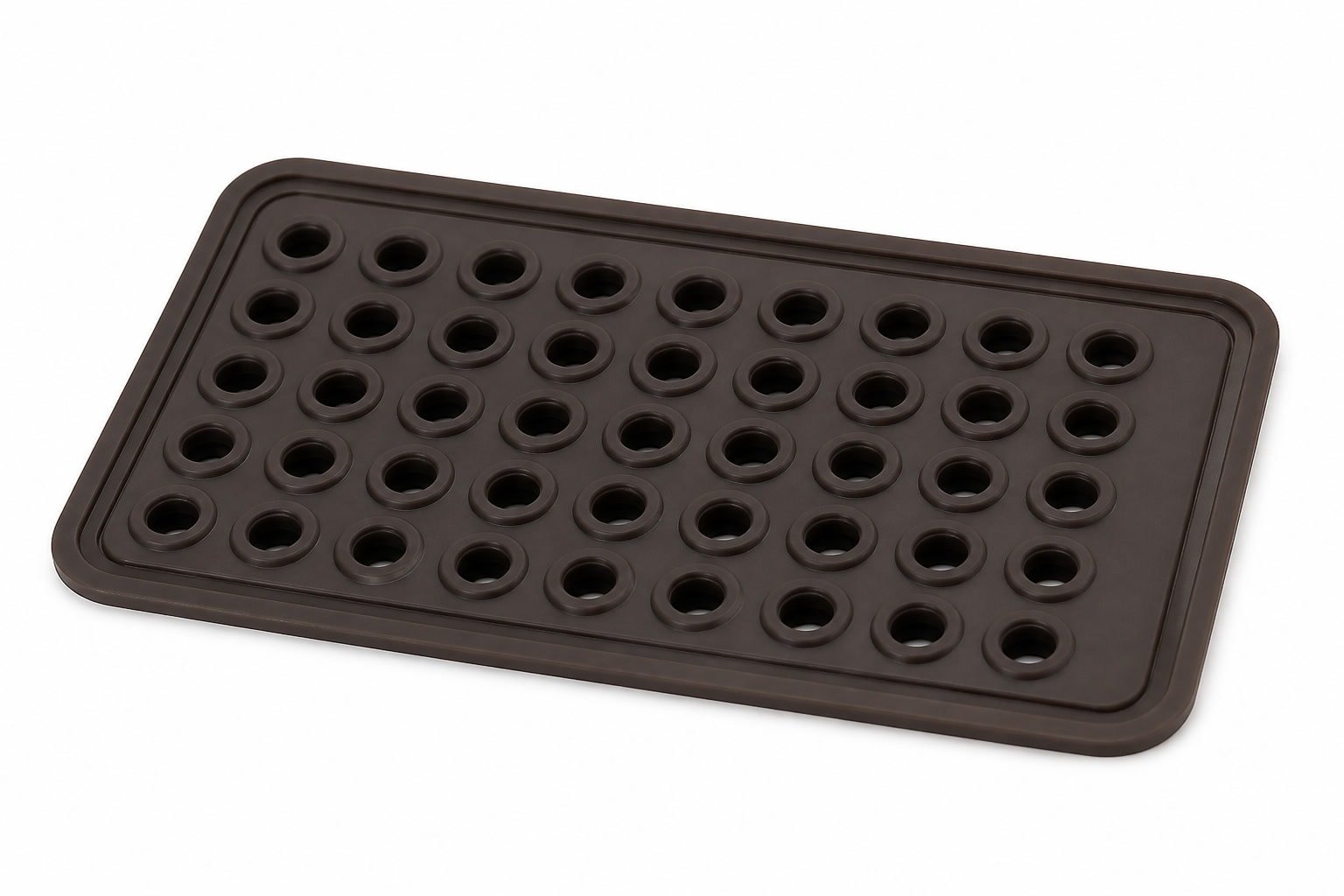

Connector Mat Seals Manufacturer for Custom LSR Molding
LSRParts manufactures custom connector mat seals for automotive, EV, electronics, sensor, industrial and fluid-control applications where sealing reliability, dimensional consistency and repeatable production are critical.
We support OEMs, Tier suppliers and engineering teams from early DFM review and material selection through mold design, sampling, validation, mass production, secondary operations and final inspection. Rather than offering standard off-the-shelf rubber seals, we build connector mat seals around your drawing, 3D model, connector housing, pin layout, compression requirement and production target.
Custom Connector Mat Seals for Production Programs
Connector mat seals are used to protect electrical interfaces from water, dust, fluid exposure, vibration and environmental contamination. In many applications, they must maintain sealing performance while allowing precise terminal insertion, stable compression and long-term material durability.
Automotive & EV
Wire harness connectors, battery and power electronics connectors, sensor modules, charging interfaces.
Electronics & Industrial
Sensor and control module connectors, industrial waterproof connectors, electronic housing interfaces.
Fluid & Medical
Fluid-control and pump electrical interfaces, medical and device connectors requiring silicone sealing.
Our priority: High-value, repeat-production silicone components with functional requirements, new tooling needs and annual demand typically above 100,000 pieces.
Why LSR for Connector Mat Seals
Liquid silicone rubber is widely used for connector mat seals because it offers a strong balance of elasticity, sealing recovery, thermal stability and long-term environmental resistance.
Material Selection Support
For programs requiring fuel, chemical, flame-retardant, thermal or electrical performance, LSRParts can help review suitable silicone material options during the DFM and material selection stage.
Heat resistance, compression set, chemical exposure, electrical insulation and environmental durability.
Medical grade LSR, platinum-cured silicone and precision molding where material reliability is critical.
Connector Mat Seal Manufacturing Capabilities
LSRParts provides liquid silicone rubber injection molding, LSR overmolding, silicone compression molding, precision mold making and secondary operations for custom silicone sealing components.
| Capability | LSRParts Specification |
|---|---|
| Process | Liquid Silicone Rubber Injection Molding |
| Maximum Part Envelope | 300 × 200 × 100 mm |
| Silicone Hardness | 10–80 Shore A |
| Typical Part Tolerance | ±0.05 mm |
| Critical Tolerance | Down to ±0.02 mm, application dependent |
| Mold Manufacturing Tolerance | ±0.01 mm |
| Part-to-Part Repeatability | Approx. ±0.1 mm, geometry dependent |
| Mold Cavities | Single-cavity / Multi-cavity |
| Production Mold Life | 3–5 million shots, tooling/application dependent |
| Mold Materials | P20 / H13 / 420 Stainless Steel |
| Tooling Type | Prototype Tooling / Production Tooling |
| Production Scale | Prototype to high-volume mass production |
| Color | Custom / Pantone matching |
| Surface | Custom texture / matte / polished |
| Automated Molding | Available |
| Secondary Operations | Post-curing, trimming, printing, laser marking, bonding, assembly |
DFM Review for Connector Mat Seals
A reliable connector mat seal starts before the mold is built. Small geometry decisions can affect insertion force, flash control, compression behavior, sealing contact, part release and long-term functional stability.
During DFM review, our engineering team evaluates the following critical factors:
Pin hole geometry and spacing
Seal thickness and wall uniformity
Compression ribs, lips and sealing surfaces
Draft angles and undercut conditions
Flash control requirements
Terminal insertion and assembly direction
Silicone hardness and compression set expectations
Shrinkage and tolerance stack-up
Connector housing interface dimensions
Production volume and cavity strategy
Material bonding requirements, if overmolding is involved
Inspection points and functional test requirements
This early review helps identify manufacturing risks before tooling begins and gives customers a clearer path from prototype validation to stable mass production.
Typical Project Workflow
LSRParts supports connector mat seal programs through a production-oriented workflow suitable for OEM and Tier supplier projects.
Tooling for Connector Mat Seals
Connector mat seals often include multiple holes, thin sealing sections and tight interface dimensions. Tool accuracy and cavity consistency are essential for repeatable sealing performance.
| Tooling Capability | Specification |
|---|---|
| DFM | Yes |
| CAD | SolidWorks / CAD |
| Mold Flow Review | Supported |
| CNC | 3-axis / 5-axis CNC |
| EDM | Sinker EDM / Wire EDM |
| Rapid Tooling | Aluminum tooling |
| Rapid Tool Life | Approx. 100–10,000 cycles |
| Production Tooling | Hardened steel tooling |
| Common Mold Steel | P20 / NAK80 / H13 / S136 / 420 |
| Stainless Tooling | 316 / 420 where applicable |
| Aluminum Tooling | 6061 / 7075 |
| Tool Surface Finish | Ra 0.8 μm or better where required |
| Prototype Tool Lead Time | Benchmark approx. 10–12 days |
| Production Tool Lead Time | Benchmark approx. 3–6 weeks |
| Sampling | T0 / T1 / validation |
| Multi-Cavity Tooling | Yes |
| High-Volume Tooling | Yes |
Depending on project requirements, we can support prototype tooling for early validation or hardened production tooling for high-volume connector seal manufacturing.
Material Options for Connector Mat Seals
Material selection depends on the connector environment, sealing force, operating temperature, chemical exposure and regulatory requirements.
General Purpose LSR
Industrial / electronics
Medical Grade LSR
Medical devices
Food Grade LSR
Food / beverage / baby
Platinum-Cured Silicone
Medical / food contact
Optical LSR
Optical / lighting
Fluorosilicone
Automotive / fuel / chemical exposure
High-Temperature Silicone
Automotive / industrial
Low-Temperature Silicone
Outdoor / automotive
Electrically Conductive Silicone
Electronics / EMI
Thermally Conductive Silicone
Thermal management
Flame-Retardant Silicone
Electrical / automotive
Custom Compounds
Application specific
LSR Overmolding for Connector Assemblies
Some connector programs require silicone sealing features to be molded directly onto plastic or metal substrates. LSRParts supports LSR overmolding and insert molding for connector components where bonding, sealing integration or assembly simplification is required.
Supported Substrates
Plastic Substrates
PC, PA, PBT, PPSU, PPA, PEI etc.
Metal Substrates
Aluminum, Stainless Steel, Brass, Copper
Bonding
Chemical / mechanical bonding strategy
| Capability | Specification |
|---|---|
| Maximum Part Envelope | 300 × 200 × 100 mm |
| LSR Hardness | 10–80 Shore A |
| Mold Tolerance | ±0.01 mm |
| Typical Part Tolerance | ±0.05 mm |
| Mold Cavities | Single / Multi-cavity |
| Mold Life | 3–5 million shots depending on tooling |
| Insert Molding | Supported |
| Typical Applications | Medical devices, connectors, seals, grips, electronics |
| Post Processing | Post-cure, trimming, printing, marking, assembly |
Our engineering team can review substrate material, surface preparation, bonding strategy and mold design requirements during the early project stage.
Secondary Operations and Inspection
Connector mat seals may require post-curing, trimming, slitting, inspection, packaging or assembly support before delivery. LSRParts provides secondary operations to help customers receive production-ready silicone parts.
Applications for Connector Mat Seals
LSRParts manufactures connector mat seals for demanding programs across several priority industries.
Automotive and EV
Automotive and EV connector mat seals are used in wire harness systems, battery packs, sensors, charging interfaces, control modules and power electronics. These parts often require stable sealing performance under temperature change, vibration, moisture exposure and long service life.
Typical components include:
Electronics and Sensors
Electronic connector seals help protect housings, terminals and interfaces from moisture, dust and environmental contamination. LSRParts can support small precision seals, overmolded parts and custom silicone sealing components for electronic assemblies.
Pumps, Valves and Fluid Control
For pump and valve systems, connector seals may need to withstand fluid exposure, pressure changes or repeated assembly conditions. LSRParts can review material compatibility and sealing geometry based on the operating environment.
Medical and Healthcare Devices
For medical device connector seals, LSRParts can support medical grade LSR, platinum-cured silicone and precision molding requirements where material reliability and dimensional consistency are critical.
Best-Fit Connector Mat Seal Projects
LSRParts is a strong fit for connector mat seal projects where the customer has:
Not a Fit?
We are not focused on low-volume commodity rubber products. Our manufacturing model is built around custom silicone components that require tooling, engineering review and stable production.
If your project involves custom tooling, engineering support and repeatable production volumes, LSRParts is the right partner.
Request a Quote for Custom Connector Mat Seals
To start a connector mat seal project, send your 2D drawing, 3D file, material requirement, target hardness, estimated annual volume and application conditions.
- DFM review for manufacturability
- Suitable silicone material recommendations
- Prototype or production tooling development
- T0/T1 samples and validation support
- Program support through mass production
