Silicone Diaphragms Engineered for Precision and Reliability

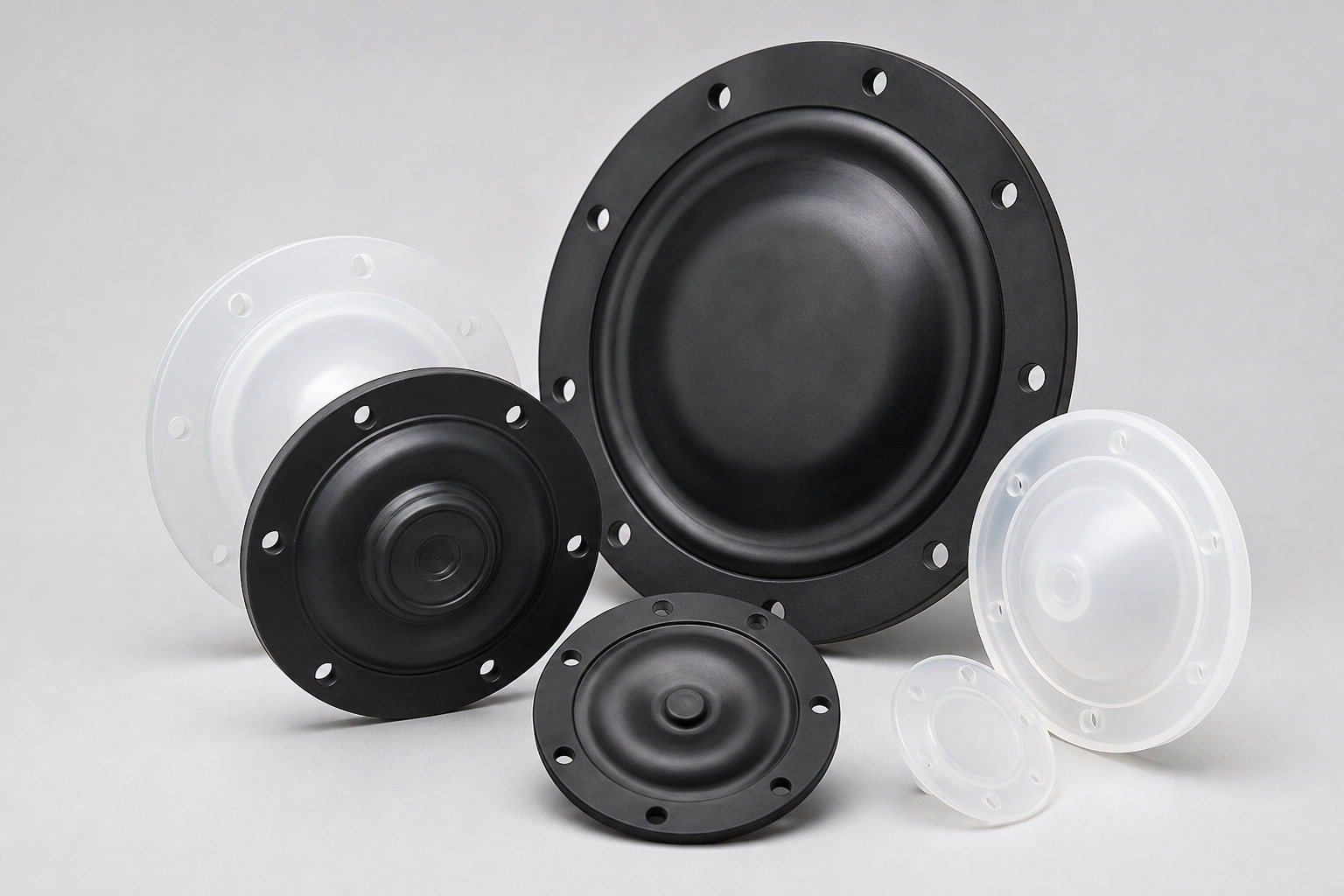

At LSRParts, we deliver custom liquid silicone rubber diaphragms built exactly to your drawings and performance needs. Whether you are developing a new pump valve, medical device, or fluid control system, our engineering team works with you from the first sketch through validated production.
We understand that the right diaphragm must meet tight tolerances, deliver consistent sealing, and survive high cycle counts in demanding applications. That is why we focus on early DFM reviews, material selection, and tooling that match your exact requirements—so you avoid surprises later in the process.
Why Custom Silicone Diaphragms Deliver Results You Can Count On
Our liquid silicone rubber (LSR) diaphragms are produced in a controlled, repeatable environment that standard rubber suppliers cannot match. Customers receive parts with:
Tight Dimensional Consistency
Typical tolerance of ±0.05 mm with critical tolerance down to ±0.02 mm for demanding applications.
Reliable Sealing Performance
Hardness range of 10–80 Shore A with multi-cavity tooling for identical parts every cycle.
Production-Ready Quality
Parts per million yield with full traceability from mold to final inspection.
Our Proven Workflow
Key Specifications for Our Silicone Diaphragms
Our manufacturing capabilities cover a wide range of sizes, materials, and tolerances to meet your exact application requirements.
| Specification | LSRParts Capability |
|---|---|
| Maximum Part Envelope | 300 × 200 × 100 mm |
| Silicone Hardness | 10–80 Shore A |
| Typical Tolerance | ±0.05 mm |
| Critical Tolerance | Down to ±0.02 mm, application dependent |
| Mold Cavities | Single / Multi-cavity |
| Production Mold Life | 3–5 million shots, tooling dependent |
| Mold Materials | P20 / H13 / 420 Stainless Steel |
| Secondary Operations | Post-curing, trimming, laser marking, bonding, assembly |
Typical Project Timeline That Reduces Your Risk
A reliable diaphragm starts long before the first shot. Our standard process gives you clarity at every step:
DFM Review
Early design for manufacturability analysis
Material Selection
Choose the right silicone for your application
Mold Design & Tool Manufacturing
Precision tooling built for production longevity
T0/T1 Sampling
First articles for dimensional and functional validation
Validation & Production Approval
Comprehensive testing before mass production begins
Mass Production & Inspection
High-volume manufacturing with full quality control
Why Early DFM Matters
By reviewing wall thickness, draft angles, sealing features, flash requirements, and expected volume early, we identify any manufacturing risks before tooling begins. This approach saves you time and cost compared with late-stage changes.
"Early DFM collaboration typically reduces tooling iterations by 40% and accelerates time-to-market by several weeks."
— LSRParts Engineering Team
40%
Fewer Tooling Iterations
24h
Quote Response Time
Industries That Trust Us for Silicone Diaphragms
We regularly support OEMs and Tier suppliers across a wide range of demanding sectors.
Automotive & EV
Battery seals, sensor seals, and valve components for electric and traditional vehicles.
Medical & Healthcare
Medical-grade diaphragms for devices and precise fluid control applications.
Pumps, Valves & Fluid Control
Custom sealing diaphragms engineered for high-performance pump systems.
Electronics & Sensors
Waterproof and environmental seals that protect sensitive components.
Food, Beverage & Baby Care
Food-grade platinum-cured silicone options for consumer safety and compliance.
Ideal Customer Profile
Companies with custom drawings, new tooling requirements, and annual demand above 100,000 pieces.
Ready for Production-Ready Silicone Diaphragms?
If you have a drawing or 3D file for a new or existing silicone diaphragm application, send it to us and we will respond within 24 hours with a detailed quotation that includes part numbers, pricing, lead times, and full technical data.
Let's turn your diaphragm requirement into a reliable, on-time production component. Submit your RFQ now and we will get started immediately.
What You Receive in Your Quote:
- Itemized part numbers and unit pricing
- Production lead times and delivery schedule
- Full technical data and material recommendations
